| Model: | DC506S | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Max Input Power: | 350W | Output Voltage: | 60 KV |
| Max Output Current: | 5mA | Max Output Power: | 300 W |

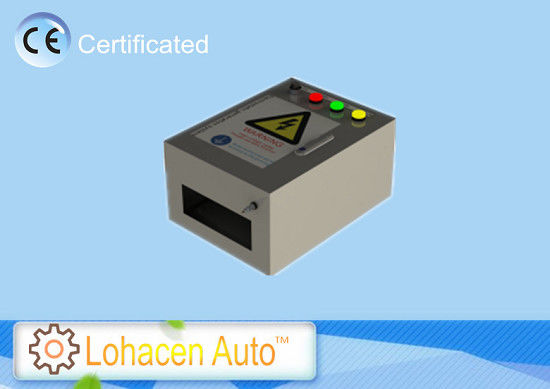

100V～240VAC DC506S (Case type) high power 60KV Charging Generator 400*300*200mm
1. Introduce
DC506S case type charging generator is a kind of static application equipment. The static charging generator is composed of a static emitter (bar) and a DC high voltage power supply. For DC high voltage power supply, provide plasma launcher(bar) of negative (or positive) high voltage,to emit negative ions (or positive ions) and then add electronic charge(artificial charge) on an object (workpiece). The higher the voltage, the greater the effective range. It is widely used in non-woven fabric, film, painting, printing, flocking, sorting and biological engineering fields. It have many advantages like simple installation, fire protection, no electric shock and stable work.
2. Applications:
Inmold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles.
3.Advantage
| Feature | Benefit |
| External switch and indicator light | Simple operation, suitable for large machine equipment basic workers |
| High frequency transformer package | Suitable for fast switching high voltage output occasions |
| Output voltage is infinitely adjustable | Optimize the performance of the application according to the application without application, and obtain the optimal electrostatic adsorption effect without overload. |
| Built-in overload protection | Delay device life |
| Signal line control | Remote control of high voltage output via relay Easy integration with PLC |
4. Technical parameters:
| Input Voltage | 100V～240VAC |
| Max Input Power | 350W |
| Output Voltage | 60 KV |
| Max Output Current | 5mA |
| Max Output Power | 300 W |
| Output Polarity | 1pc 60kv+ or 1pc 60kv- |
| Working Temperature | -15℃～60℃ |
| Output Stability | Max Load 1％ |
| Output connector | 60kv*1 or 60kv*2 |
| Voltage control | Stepless pressure regulation |
| Remote control | Support signal line remote switch control |
| Weight | 7 kg |
| Size | 400*300*200mm |
