Product Details:
Payment & Shipping Terms:
|
| Model: | VCM30-N | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Output Voltage: | 0-30kv Adjustable Stepless | Max Output Current: | 5mA |
| Max Output Power: | 150W | Output Polarity: | - Negative |

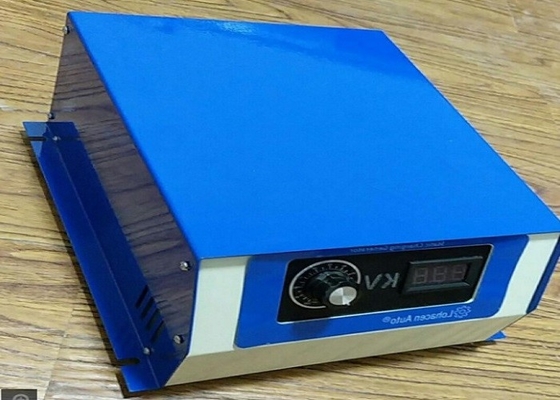

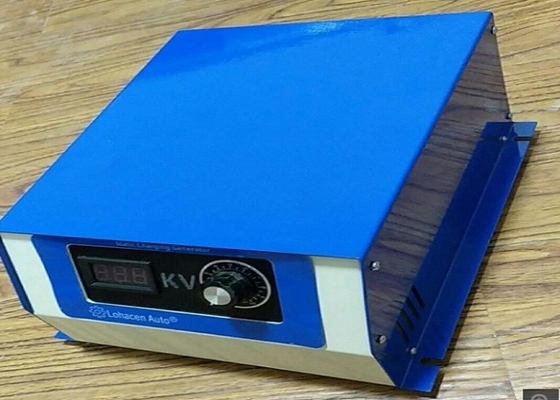

VCM30-N Static Charging Generator Input Voltage100V～240VAC V Output Voltage 0-30kv Adjustable stepless
Application:
VCM30-N Static Charging Generator is widely used in industrial production (In mold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles) field and scientific research etc..
Can replace SIMCO charge master CM30N, VCM30N; ELTEX KNH18/N2A ; FRASER Charging Generator IONFIX-PRO-30N
The advantages are:
1. Stepless adjustable voltage from 0--30kv;
2. Charging static faster, 0.1s up to 30KV;
3. Big static adsorption;
4. Remote control
Technical Specifications
| Model | VCM30-N | |
| Input Voltage | 100V～240VAC | |
| Output Voltage |
0-30kv Adjustable stepless |
|
| Max Output Current | 5mA | |
| Max Output Power | 150W | |
| Output Polarity | - Negative | |
| Working Temperature | -15℃～50℃ | |
| Output Stability | Max Load 1％ | |
| Output | 30KV*1 or 30KV*2 or 30kv*3 | |
| Size | 303mm*257.5mm*128.5mm | |
| Weight | 7.5kg |
