Intelligent TIJ Inkjet Printer Multifunctional Variable Data Printing System

China Intelligent TIJ Inkjet Printer Multifunctional Variable Data Printing System supplier

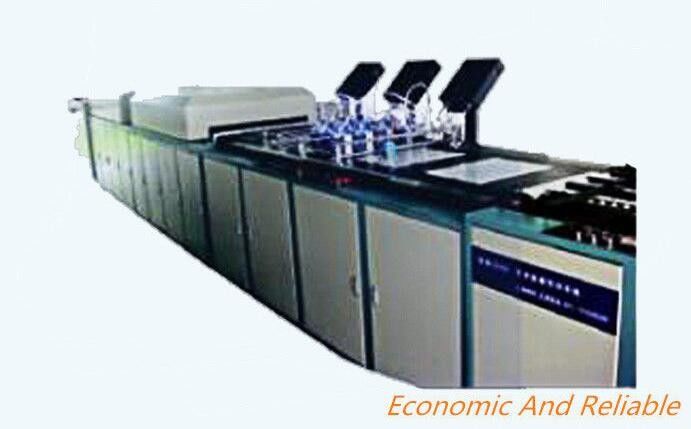

Large Image :  Intelligent TIJ Inkjet Printer Multifunctional Variable Data Printing System

Product Details:

Place of Origin: china
Brand Name: inntronic
Model Number: NANOJET-II

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Pattern: NANOJET-II DPBOX Size: 286mm*260mm*73mm
DPBOX Weight: < 6kg DPBOX Max. Print Width: 1~24 Printheads 0.5 Inch/printhead
DPBOX Interface: RS232C (DB9)(Continuous Ink Supply) DPBOX 100M Ethernet Printhead(x4) Print Resolution And Speed: 600x600 Dpi(30m/min) 600x300 Dpi(60m/min) 300x600 Dpi(high-speed Mode) (60m/min) 600x200 Dpi(30m/min) 600x150 Dpi(120m/min) 300x300 Dpi(high-speed Mode) (120m/min) 300x600 Dpi(30m/min) 300x300 Dpi(60m/min) 300x200 Dpi(high-speed Mode

China TIJ Thermal Inkjet Printer Multifunctional Variable Data Printing System - DPBOX - IN-TIJ005

Multifunctional Variable Data Printing System - DPBOX



Multifunctional Variable Data Printing System Industry Applications

1. Packaging Industry: varlable barcode, numerlc, date, LOGO of outer carton packaging.
2. Pharmaceutical Industry: electronic product supervision code, numeric, date, logo, etc.
3. Bills or note Industry: clothing tag, animals labels and etc.
4. Label or Tag industry: clothing tag, animals lable, etc.
5. Security packaging: cigarette lables, wine lables and etc.
6. Card producting: scratch card, game card, prepaid phone card.


Multifunctional Variable Data Printing System Features:

1. It is with excellent dynamic variable barcode printing technology and high quality in inkjet printing of barcodes.
2. System supports DPBOX multiple cascading, Max, 6 sets of DPBOX controller cascading,
printing max width 12 inches(304.8mm)
3. Seamless joint between multi-printheads, its accuracy could be set in software
4. It can print dot-matrix font with printing resolution as high as 600*600 DPI with clear and
artistic effect
5. The inkjet printing speed can reach 304m/min(300*150DPI)
6. Has function to prevent date loss



Hardware Technical Parameters

DPBOX Size286mm*260mm*73mm
DPBOX Weight< 6kg
DPBOX Max. Print Width1~24 printheads; 0.5 inch/printhead
DPBOX InterfaceRS232C (DB9)(Continuous Ink Supply) DPBOX 100M Ethernet Printhead(x4)
Print Resolution and Speed

600x600 dpi(30m/min) 600x300 dpi(60m/min) 300x600 dpi(high-speed mode) (60m/min)

600x200 dpi(30m/min) 600x150 dpi(120m/min) 300x300 dpi(high-speed mode) (120m/min)

300x600 dpi(30m/min) 300x300 dpi(60m/min) 300x200 dpi(high-speed mode) (180m/min)

300x200 dpi(30m/min) 300x150 dpi(120m/min) 300x150 dpi(high-speed mode) (304m/min)

Ink-supplySingle HP Ink Cartridge, Bulk Ink Cartridge, Continuous Ink Supply System
SensorSupport many kinds of External Sensors(NPN Sensor, Contact Sensor)
Synchronizer300PPI synchronizer
Power RequirementSingle Phase, 110~240V AC 50/60Hz 3.2A Single Phase, 220~240VAC 50/60Hz 1.6A
Working EnvironmentTemperature 10℃~35℃, Humidity 10%~80%
Storage EnvironmentTemperature -15℃~85℃, Humidity 5%~95%, No Condensation Environment
 Software Technical Parameters
Operating SystemWindows XP(Professional), other system needs especial declaration
Static ObjectStatic Text, Image and Barcode
Dynamic ObjectDynamic Text, Counter, Date and Barcode(Dynamic Bitmap needs customization)
Barcode Type

1D: EAN128, Code 25, Code 39, Code 93, Code 128, GS1 Databar, etc

2D: PDF417, Data Matrix, Maxi Code, QR-code, etc

Multifunctional Variable Data Printing SystemMultifunctional Variable Data Printing System - DPBOX - IN-TIJ005Multifunctional Variable Data Printing System - DPBOX - IN-TIJ005
