Product Details:
Payment & Shipping Terms:
|
| Model: | VCM30-P | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Output Voltage: | 0-30kv Adjustable Stepless | Max Output Current: | 5mA |
| Max Output Power: | 150W | Output Polarity: | + Positive |

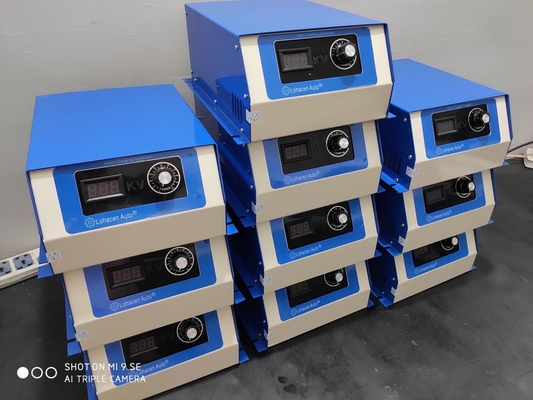

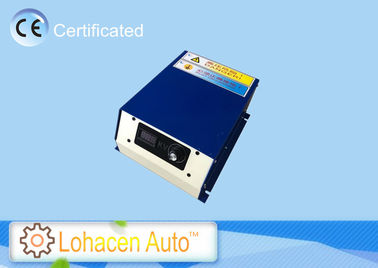

VCM30-P Static Charging Generator used in industrial production (In mold labelling(IML)
VCM30-P Static Charging generator is widely used in industrial production (In mold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles) field and scientific research etc..
VCM30-P Static Charging generator Advantages:
1. Stepless adjustable voltage from 0--30kv;
2. Charging static faster, about 0.1s after opening;
3. Big static adsorption;
4. Remote control
Technical Specifications
| Model | VCM30-P | |
| Input Voltage | 100V～240VAC | |
| Output Voltage |
0-30kv Adjustable stepless |
|
| Max Output Current | 5mA | |
| Max Output Power | 150W | |
| Output Polarity | + Positive | |
| Working Temperature | -15℃～50℃ | |
| Output Stability | Max Load 1％ | |
| Output | 30KV*1 or 30KV*2 or 30kv*3 | |
| Size | 303mm*257.5mm*128.5mm | |
| Weight | 7.5kg |
