VCM20-N Big Static Adsorption 20kv Charging Generator Charging ​ Can replace SIMCO CM20N, VCM20N; ELTEX EU20N

Good quality static eliminator for sales
I'm Online Chat Now

VCM20-N Big Static Adsorption 20kv Charging Generator Charging ​ Can replace SIMCO CM20N, VCM20N; ELTEX EU20N

China VCM20-N Big Static Adsorption 20kv Charging Generator Charging ​ Can replace SIMCO CM20N, VCM20N; ELTEX EU20N supplier

Large Image :  VCM20-N Big Static Adsorption 20kv Charging Generator Charging ​ Can replace SIMCO CM20N, VCM20N; ELTEX EU20N

Product Details:

Place of Origin: CHINA
Brand Name: inntronic
Model Number: VCM20-N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Model: VCM20-N Input Voltage: 100V~240VAC
Output Voltage: 0-20kv Adjustable Stepless Max Output Current: 1mA
Max Output Power: 20W Output Polarity: - Negative

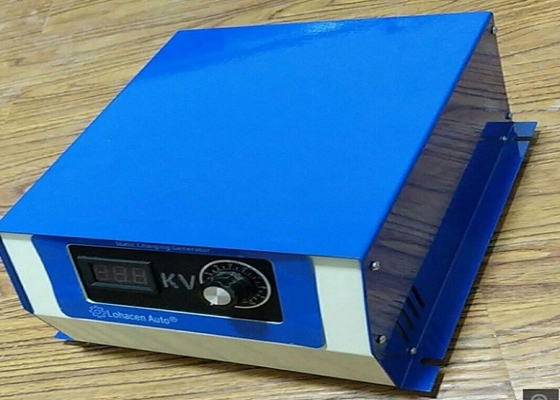

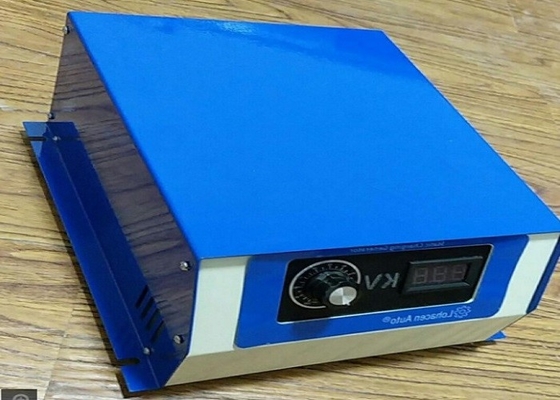

VCM20-N Static Charging Generator  Input Voltage 100V~240VAC 0-20kv Adjustable stepless





VCM20-N​ Charging generator is widely used in industrial production (In mold labelling system,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles) field and scientific research etc..



Advantages:

1. Stepless adjustable voltage from 0--20kv;

2. Charging static faster, 0.1s up to 20KV;

3. Big static adsorption;

4. Remote control



VCM20-N​ Can replace SIMCO chargemaster CM20N, VCM20N; ELTEX EU20N ; FRASER charging generator IONFIX-PRO-20N



Technical Specifications

Model   VCM20-N
Input Voltage   100V~240VAC
Output Voltage   0-20kv Adjustable stepless
Max Output Current   1mA
Max Output Power   20W
Output Polarity   - Negative
Working Temperature   -15℃~50℃
Output Stability   Max Load 1%
Output   20KV*1 or 20KV*2 or 20kv*3
Size   303mm*257.5mm*128.5mm
Weight   7.5kg
