Product Details:
Payment & Shipping Terms:
|
| Name: | CM20 And CM30 Static Generator | Input Voltage: | 100V～240VAC |
|---|---|---|---|
| Output Voltage: | 0-20kv Stepless Adjustable | Ambient Temperature: | -15℃～50℃ |
| Main Engine Size: | 244*124*64mm | Main Engine Weight: | Main Engine Weight |

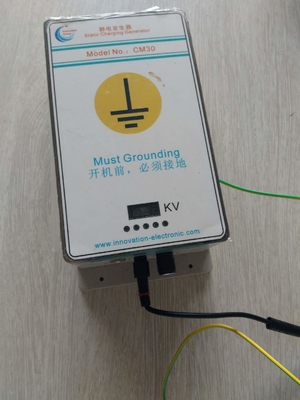

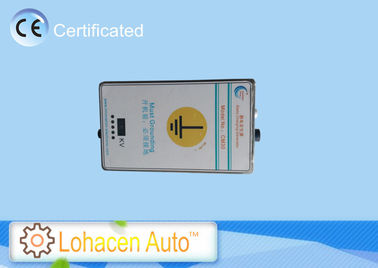

0-20KV (Simco CM20 and CM30) static Charging genrator for static ink of gravure press
Industry application:
IML(In-Mold Labeling)/ Automatic film change/ Cast seam/ Electrostatic pile paper/ Electrostatic recombination/ Edge banding of heat shrinkable packaging machine/ ake-up and exhaust of bag-making machine/ static insert card/ static cooling of Rotary press/ static ink of gravure press/ static laid paper of overlaying production line/ static film (paper) pasting for shearing machine/ static adsorption location of glass sheet；
Advantage:
| feature | benefit |
| Small measurement and weight | easy to install and use, save space |
| High frequency variable pressure package | Suitable for fast breaking high voltage output occasions |
| Output voltage 0-20KV Stepless adjustable；Output voltage 0-30KV Stepless adjustable | Don’t need to optimize the service performance according to the application. Can realize the optimal static absorption effect without overload, and suitable for all IML equipment. |
| internal overload protection | Postpone the lifespan of equipment |
| Signal cable control | Can remote control the output of high voltage by relay easy to integrated with PLC |
| 24V DC input | Suitable for most automatic machine. |
Can replace Meech IML994L; FRASER E73150N-AC, E73150P-AC!!!
Specifications
| Input voltage | 100V～240VAC (main engine 24VDC is provided by adaptor) |
100V～240VAC (Main engine 24VDC is provided by adaptor) |
| Max. Power input | 75W | 75W |
| output voltage | 0-20kv Stepless adjustable | 0-30kv Stepless adjustable |
| Max output current | 5mA | 5mA |
| max power output | 100W | 150W |
| Output polarity | - minus / + positive | - minus / + positive |
| ambient temperature | -15℃～50℃ | -15℃～50℃ |
| Output stability | 1％ when applied max load | 1％when applied max load |
| Output hole | 1 way output or 2 way output | 1 way output or 2 way output |
| Main engine size | 244*124*64mm | 244*124*64mm |
| Main engine weight | 2kg | 2kg |
| Installation and fixation | M4 Metal screw | M4 Metal screw |
